Paket med förångare & kylmedelkylare

Paket med Waterloop-förångarenhet med inbyggd kompressor och kylmedelkylare är kompakta enheter för installation i små kylrum, designade med naturligt köldmedium R-290 och vattenkyld kondensor. Dessa enheter är energieffektiva och miljövänliga, vilket gör dem till ett utmärkt val för hållbara kylsystem. Den vattenkylda kondensorn säkerställer effektiv värmeöverföring och stabil drift, medan användningen av R-290 (propan) som köldmedium minimerar miljöpåverkan. Tack vare sin kompakta design är enheterna enkla att installera och underhålla, vilket sparar både tid och utrymme.

Tillbaka till överliggande kategori

230V 50Hz / 400V 3N 50Hz | Hermetisk kompressor - Scrollkompressor | Köldmedium R-290
Positiv temperatur

Serie / Modell	Kompressor	Kompressor		Kylkapacitet / kylrums-volym(W) (1) 0 ºC / KM in +7 ºC		Tillförd effekt (kW)	Max. ström (A)	Förångande luftflöde (m3/h)	Tryckfall i kondensorn (liter/timme)	Tryckfall i kondensorn (kPa) (2)	Hydraulisk anslutning	Påfyllning av köldmedium (gr.) (3)	Vikt (kg)	Ink. kmk (4)
Serie / Modell	Kompressor	HP	Ström-försörjning	W	m3	Tillförd effekt (kW)	Max. ström (A)	Förångande luftflöde (m3/h)	Tryckfall i kondensorn (liter/timme)	Tryckfall i kondensorn (kPa) (2)	Hydraulisk anslutning	Påfyllning av köldmedium (gr.) (3)	Vikt (kg)	Ink. kmk (4)
MCC-ND-1 017 +CWF-0	1x H	3/4	230V	1 400	12	0.8	7.7	1 600	350	3	3/4"	210	50	CWF-0
MCC-ND-1 034 +CWF-0	1x H	1 1/2	230V	2 230	24	1.4	16.4	1 600	600	3	3/4"	170	59	CWF-0
MCC-SD-1 012 +CWF-1	1x Sc	1 1/2	400V 3N	2 830	33	1.4	7.7	1 600	750	5	3/4"	265	62	CWF-1
MCC-SD-2 017 +CWF-2	1x Sc	2	400V 3N	3 850	51	2.0	9.0	1 700	1 000	5	1"	240	72	CWF-2

Negativ temperatur
				(-20 ºC)
BCC-ND-1 034 +CWF-0	1x H	1	230V	970	9	1.0	11.0	1 600	350	3	3/4"	150	59	CWF-0
BCC-SD-1 012 +CWF-0	1x Sc	1 1/2	400V 3N	1 420	15	1.4	7.6	1 600	500	3	3/4"	150	68	CWF-0
BCC-SD-1 012 +CWF-1	1x Sc	1 1/2	400V 3N	1 420	15	1.4	7.6	1 600	500	3	3/4"	150	68	CWF-1
För mer information, vänligen kontakta en av Refricos säljrepresentanter.											GBG	MMÖ	STO	UPP
(1) Nominell prestanda avser drift med kylrumstemperaturer på 0 ºC (PT) och -20 ºC (NT) och kylmedeltemperatur in +7 ºC. Uppskattad kylrumsvolym enligt villkoren i beräkningsgrunderna (sidan 12). (2) Kondensorns tryckfall i vattenkretsen. (3) A3-köldmediefyllning mindre än 0,5 kg, enheter undantagna från förordning (EU) nr 517/2014. (4) Rekommenderadkmk modell att kombinera med förångarenheten.

Visar 1-7 av 7 objekt

Intarcon Waterloop MCC-ND-1 017+CWF-0

0101040

Kyleffekt 887 W, rumstemperatur 0°C, KM in +35°C, vätskekyld, R290.

Visa

Intarcon Waterloop MCC-ND-1 034+CWF-0

0101042

Kyleffekt 1639 W, rumstemperatur 0°C, KM in +35°C, vätskekyld, R290.

Visa

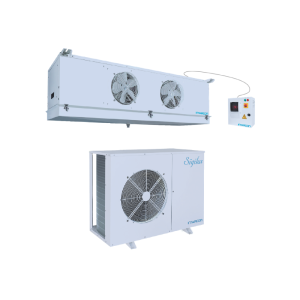

Intarcon Waterloop MCC-SD-1 012+CWF-1

0101044

Kyleffekt 2694 W, rumstemperatur 0°C luftkylt R290, 400V.

Visa

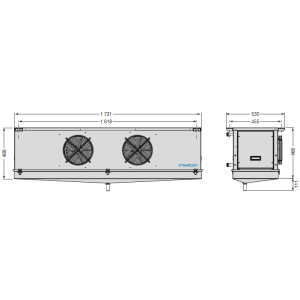

Intarcon Waterloop MCC-SD-2 017+CWF-2

0101046

Kyleffekt 3105 W (40.3 m³), rumstemperatur 0°C, KM in +35°C, vätskekyld, R290, 400V.

Visa

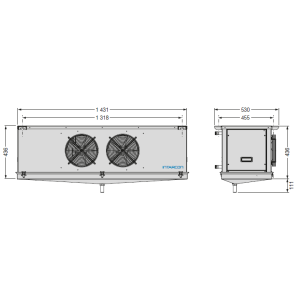

Intarcon Waterloop BCC-ND-1 034+CWF-0

0101060

Kyleffekt 578 W, rumstemperatur -20°C, KM in +35°C, vätskekyld, R290.

Visa

Intarcon Waterloop BCC-SD-1 012+CWF-0

0101062

Kyleffekt 930 W, rumstemperatur -20°C, KM in +35°C, vätskekyld, R290, 400V.

Visa

Intarcon Waterloop BCC-SD-1 012+CWF-1

0101064

Kyleffekt 1240W, rumstemperatur -20°C, KM in +35°C, vätskekyld, R290, 400V.

Visa
