Bilden kan avvika från verkligheten.

Kelvion

Kelvion Fläktförångare TEC3.5-5AL

Lamelldelning 5.1mm, utan avfrostning, 1st. EC-ESM-fläkt

Artikelnr. 401119

Logga in för priser Ansök om kundkonto

Kelvion Fläktförångare TEC3.5-5AL

Lamelldelning 5.1mm, utan avfrostning, 1st. EC-ESM-fläkt kopplad i kopplingsbox, 21bar.

Obs! Expansionsventil med yttre tryckutjämning krävs.

TEC är ett sortiment av nio små "blow trough"-förångare med ett brett arbetsområde +10 °C till -40 °C. Förångarna är lämpliga för både hög-, medel- och lågtemperaturapplikationer (värmestavar krävs, tillbehör). Vi erbjuder också ett utökat sortiment av CO2 förångare för kommersiella och detaljhandelskylapplikationer, dessa går under benämningen TECX.

Köldmedium	GWP	Beräkningsmetod		Nominell kyleffekt i kW, Kastlängd 5m, Antal fläktar 1st.
				te [-8°C], DT[8K]		te [-31°C], DT[6K]
				(S1)-1440 rpm		(S1)-1440 rpm
R134a	1430	Dew point		1.10		-
R513A	631	Dew point		1.09		-
R452A	2140	Mid point	Dew point	1.15	1.40	0.76	0.96
R448A	1397	Mid point	Dew point	1.15	1.53	0.76	1.09
R449A	1389	Mid point	Dew point	1.15	1.51	0.76	1.07
R404A	3922	Mid point	Dew point	1.14	1.17	0.74	0.78

Vi rekommenderar att kyleffekten på förångaren beräknas med Mid point.

Alla modeller TEC-X-5-AL 5.1mm	Antal fläktar st.	Kast- längd m	Nominell kyleffekt i kW 1440 rpm. Beräkningsmetod Mid point (R513A Dew point)
			te [-8°C], DT [8K] / te [-31°C], DT [6K]							te [-6°C], DT [8K] / te [-25°C], DT [7K]							te [-4°C], DT [8K]
			R513A	R452A		R448A		R449A		R513A	R452A		R448A		R449A		R513A	R452A	R448A	R449A
TEC 1-5	1	4	0.48	0.49	0.31	0.49	0.30	0.49	0.30	0.51	0.52	0.38	0.50	0.38	0.51	0.38	0.52	0.52	0.49	0.50
TEC 2-5	1	4	0.75	0.82	0.53	0.81	0.53	0.82	0.53	0.81	0.86	0.64	0.84	0.65	0.85	0.65	0.83	0.86	0.82	0.83
TEC 3-5	1	5	0.91	0.97	0.57	0.97	-	0.97	-	-	1.02	0.73	1.01	0.74	1.02	0.74	-	1.03	0.99	1.00
TEC 3.5-5	1	5	1.09	1.15	0.76	1.15	0.76	1.15	0.76	1.16	1.20	0.92	1.18	0.93	1.19	0.93	1.19	1.20	1.15	1.16
TEC 4-5	2	5	1.47	1.57	1.03	1.56	1.03	1.56	1.03	1.58	1.65	1.25	1.61	1.25	1.62	1.25	1.62	1.64	1.57	1.59
TEC 5-5	2	6	1.69	1.85	1.17	1.85	1.18	1.86	1.18	1.81	1.94	1.44	1.91	1.46	1.92	1.45	1.86	1.93	1.85	1.88
TEC 6-5	2	6	1.97	2.10	1.41	2.09	1.41	2.10	1.41	2.11	2.20	1.69	2.16	1.70	2.18	1.70	2.16	2.20	2.11	2.14
TEC 7-5	3	6	2.49	2.70	1.72	2.69	1.72	2.70	1.72	2.66	2.83	2.11	2.77	2.13	2.79	2.12	2.73	2.82	2.70	2.73
TEC 8-5	3	6	2.91	3.12	1.93	3.11	1.94	3.12	1.94	3.13	3.30	2.44	3.23	2.46	3.26	2.46	3.23	3.31	3.17	3.21

För information om andra köldmedier eller brinelösningar, vänligen kontakta en av Refricos säljrepresentanter.																	GBG	MMÖ	STO	UPP
Kelvion RT Select

El-avfrostning				Droppskålar + Utloppsgaller för väggmontage
För Takmontage	W	För Väggmontage	W	Droppskålar	Utloppsgaller
TEC/TG 1-5	1x275	TEC/TG 1-5	2x250	TEC/TG 1-5	TEC/TG 1-5
TEC/TG 2-5 och TL 2	1x550	TEC/TG 2-5	2x250	TEC/TG 2-5	TEC/TG 2-5
TEC/TG 3-5 och TL 3	1x700	TEC/TG 3-5	2x325	TEC/TG 3-5	TEC/TG 3-5
TEC/TG 3.3-5 och TL 3.5	1x900	TEC/TG 3.3-5	2x425	TEC/TG 3.3-5	TEC/TG 3.3-5
TEC/TG 4-5 och TL 4	1x900	TEC/TG 4-5	2x425	TEC/TG 4-5	TEC/TG 4-5
TEC/TG 5-5 och TL 5	1x1000	TEC/TG 5-5	2x575	TEC/TG 5-5	TEC/TG 5-5
TEC/TG 6-5 och TL 6	1x1000	TEC/TG 6-5	2x675	TEC/TG 6-5	TEC/TG 6-5
TEC/TG 7-5	1x1400	TEC/TG 7-5	4x1030	TEC/TG 7-5	TEC/TG 7-5
TEC/TG 8-5	1x1400	TEC/TG 8-5	4x1030	TEC/TG 8-5	TEC/TG 8-5

Artikelnummer: 401119
Modell: TEC
Kyleffekt -8°C R513A: 1.09 kW (SC2 Dt 8°K)
Kyleffekt -8°C R452A: 1.15 kW (SC2 Dt 8°K)
Kyleffekt -8°C R448A/R449A: 1.15 kW (SC2 Dt 8°K)
Vikt: 12 kg
Max arbetstryck: 21 Bar
Lamelldelning: 5.1 mm
Fläkttyp: EC
Antal fläktar: 1
Elavfrostning: Nej

Datablad

401119_Kelvion_TEC3.5-5AL HX21

Fråga oss

018 - 470 00 79

info@refrico.se

Letar du efter en produkt?
Rådfråga våra specialister.

Information

Mitt konto

Kontor

Den här webbplatsen använder sina egna och tredjepartscookies för att förbättra våra tjänster och visa dig reklam relaterade till dina preferenser genom att analysera dina surfvanor. För att ge ditt samtycke till dess användning, tryck på knappen Jag accepterar.

Mer information Customize cookies

Functional cookies

Yes

Beskrivning and cookies

Functional cookies are strictly necessary to provide the services of the shop, as well as for its proper functioning, so it is not possible to refuse their use. They allow the user to browse through our website and use the different options or services that exist on it.


PHP_SESSID	www.refrico.se	The PHPSESSID cookie is native to PHP and allows websites to store serialised status data. On the website it is used to establish a user session and to pass state data through a temporary cookie, which is commonly known as a session cookie. These Cookies will only remain on your computer until you close your browser.	Session
PrestaShop-#	www.refrico.se	This is a cookie used by Prestashop to store information and keep the user's session open. It stores information such as currency, language, customer ID, among other data necessary for the proper functioning of the shop.	1 hours
rc::a	Google	It is used to read and filter bot requests.	Persistent
rc::c	Google	It is used to read and filter bot requests.	Persistent

Advertising Cookies

Yes

Beskrivning and cookies

These are cookies that collect information about the advertisements shown to users of the website. They can be anonymous, if they only collect information about the advertising spaces shown without identifying the user, or personalised, if they collect personal information about the user of the shop by a third party, for the personalisation of these advertising spaces.


1P_JAR	Google	This cookie contains information about how the end user uses the website and any advertising that the end user may have set up before visiting the website.	1 month
ads/ga-audiences	Google	These cookies are used by Google AdWords to re-engage visitors that are likely to convert to customers based on the visitor’s online behaviour across websites.	Session
AEC	Google	‘AEC’ cookies ensure that requests within a browsing session are made by the user, and not by other sites. These cookies prevent malicious sites from acting on behalf of a user without that user’s knowledge	6 months
APISID	Google	Google uses cookies, like the PREF, NID and SID cookie, to contribute to the personalization of the ads in Google properties, like Google search. For example, we use them to store your most recent searches, your previous interactions with ads or search results and your visits to an advertiser's website. In this way we can show you personalized ads on Google.	2 years
fr	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	3 months
HSID	Google	Security cookie to confirm visitor authenticity, prevent fraudulent use of login details and protect visitor details from unauthorized access.	2 years
NID	Google	The NID cookie is used by Google for analysis purposes in their Google service Google Search and the "NID" cookie is also used to display Google ads in Google services to users who are logged out.	6 months
OGPC	Google	This cookie is set by Google and used for advertisements.	1 month
SAPISID	Google	This DoubleClick cookie is generally set via the website by advertising partners and used by them to build a profile of the website visitor's interests and display relevant advertisements on other websites. This cookie works by uniquely identifying your browser and device.	2 years
SEARCH_SAMESITE	Google	These cookies are used by Google to display personalized advertisements on Google websites, based on recent searches and previous interactions.	6 months or more
SID	Google	Security cookie to confirm visitor authenticity, secure use of login details and protect visitor details from unauthorized access.	2 years
SIDCC	Google	This cookie contains information about how the end user uses the website and any advertising that the end user may have seen before visiting the website.	1 year
SOCS	Google	Google uses the ‘SOCS’ cookie to store a user’s state regarding their cookies choices.	13 months
SSID	Google	This cookie stores the preferences and other information of the user. These include, in particular, the preferred language, the number of search results to be displayed on the page, and the decision whether or not to activate Google's Safe Search filter.	2 years
tr	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	Session
VISITOR_INFO1_LIVE	youtube.com	Tries to estimate the users' bandwidth on pages with integrated YouTube videos.	179 days
YSC	youtube.com	Registers a unique ID to keep statistics of what videos from YouTube the user has seen.	Session
yt-remote-cast-installed	youtube.com	Stores the user's video player preferences using embedded YouTube video	Session
yt-remote-connected-devices	youtube.com	Stores the user's video player preferences using embedded YouTube video	Persistent
yt-remote-device-id	youtube.com	Stores the user's video player preferences using embedded YouTube video	Persistent
yt-remote-fast-check-period	youtube.com	Stores the user's video player preferences using embedded YouTube video	Session
yt-remote-session-app	youtube.com	Stores the user's video player preferences using embedded YouTube video	Session
yt-remote-session-name	youtube.com	Stores the user's video player preferences using embedded YouTube video	Session
_fbp	Facebook	Used by Facebook to deliver a series of advertisement products such as real time bidding from third party advertisers.	3 months
__Secure-1PAPISID	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-1PSID	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-1PSIDCC	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-1PSIDTS	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-3PAPISID	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-3PSID	Google	This cookie is used by Google to create a profile of the website visitor's interests in order to display relevant and personalized Google advertising.	2 years
__Secure-3PSIDCC	Google	Used by Google for targeting purposes to profile the interests of the website visitor and display relevant and personalized Google advertising.	2 years
__Secure-3PSIDTS	Google	Cookie collects information about your interactions with Google services and ads. It is used to measure advertising effectiveness and deliver personalized content based on your interests. The cookie contains a unique identifier.	2 years

Analytics cookies

Yes

Beskrivning and cookies

Collect information about the user's browsing experience in the shop, usually anonymously, although sometimes they also allow the user to be uniquely and unequivocally identified in order to obtain reports on the user's interests in the products or services offered by the shop.


_ga	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	2 years
_gat	Google	Used by Google Analytics to throttle request rate	1 day
_gat_gtag_UA_#	Google	Used to throttle request rate.	1 minute
_ga_M1MLRVRMW8	Google	Used by Google Analytics to identify and track an individual session with your device.	One year
_gcl_au	Google	Conversion link that stores information about clicks on Google ads "_gcl_" is primarily used to help advertisers determine how many times users who click on their ads end up taking an action on their website, such as making a purchase. Cookies used to measure conversion rates are not used to personalize ads.	90 days
_gd#	Google	This is a Google Analytics Session cookie used to generate statistical data on how you use the website which is removed when you quit your browser.	Session
_gid	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	1 day

Performance cookies

Yes

Beskrivning

These are used to improve the browsing experience and optimize the operation of the shop.

Other cookies

Yes

Beskrivning

These are cookies without a clear purpose or those that we are still in the process of classifying.

Kelvion Fläktförångare TEC3.5-5AL

Kelvion Fläktförångare TEC3.5-5AL

Datablad

Kelvion Värmestav För Väggmontage

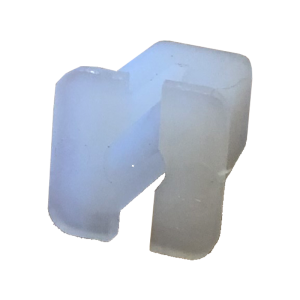

Kelvion Clips Till Utloppsgaller

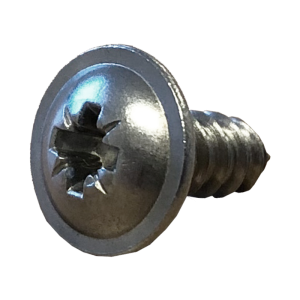

Kelvion Skruv Till Utloppsgaller

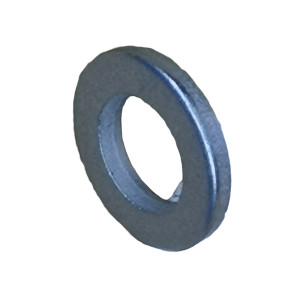

Kelvion Bricka Till Utloppsgaller

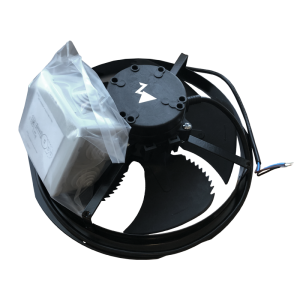

AXIALFLÄKT MED KORG SUGANDE 250MM (EC)

Kelvion Tövattenanslutning 3/4

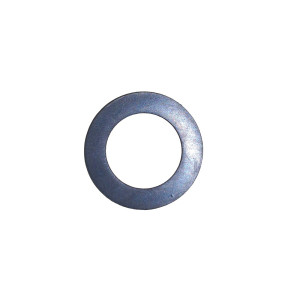

Kelvion Packning 3/4
